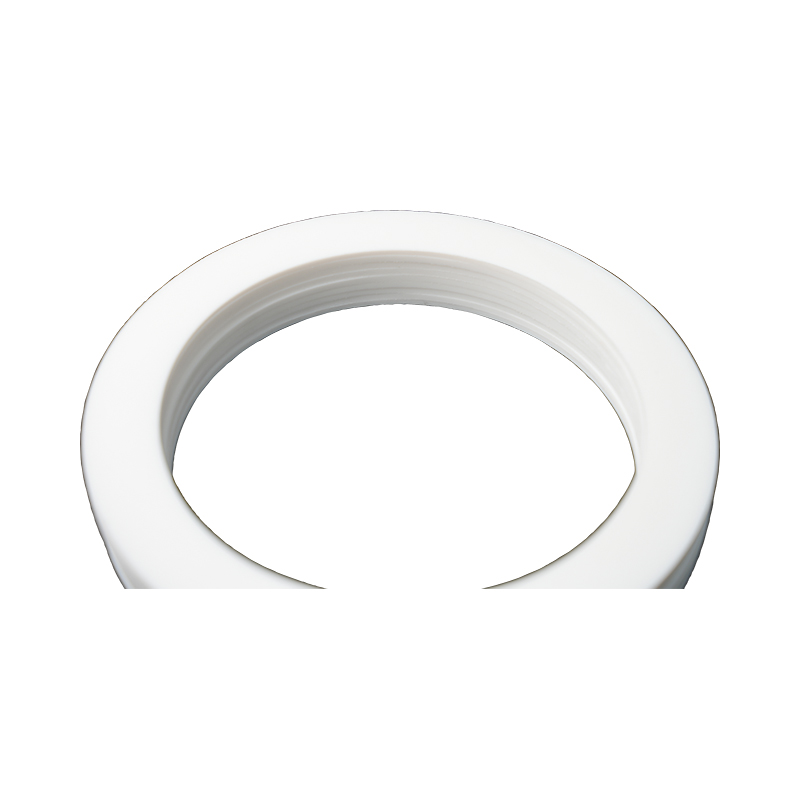

Expanded PTFE Gasket Material For Flanges
JINTAI-9960
ASTM F104:F42811-A9B5
Expanded PTFE gasket material
Use:
JINTAI 9960 is an expanded PTFE gasket material designed for use in process piping and equipment in the chemical, pulp and paper, food and beverage, and other general industries that require resistance to highly corrosive chemicals.
JINTAI 9960 is suitable for steel flanges and flanges with irregular surfaces. Style 9960 meets FDA requirements.
Specifications
Advantage:
1. Compressibility rate exceeds 60%
2. It can exert tight sealing performance in cast valves, filters and screens.
3. Compared with general filled PTFE materials, it can adapt to higher temperatures.
4. Excellent endurance performance
5. High level of torque holding capability
6. Can compensate for irregularities on the flange surface
7. Comply with Food and Drug Administration standards (FDA, United States)
8. Excellent gas sealing ability
9.Long service life
Element:
JINTAI 9960 is only made of pure PTFE resin. It is suitable for steel flanges and applications requiring high compression rate gaskets. JINTAI 9960 is also suitable for sealing flanges with irregular surfaces. This gasket does not suffer from the cold flow issues that occur with pure PTFE, or the hardness issues that occur with some other filled PTFE gaskets. It seals very well, is easy to cut, and removes cleanly from the flange after use.
Typical performance:
|
Color: |
White, marked |
|
Applicable temperature range |
-350- -600°F(-212-316℃) |
|
pressure, max. |
1800 psig (124 bar) |
|
Fluid PH value range (room temperature) |
0-14 |
|
Continuous max. temperature |
500°F(260℃) |
|
Applicable fluid media |
Steam, strong acid, strong alkali, aqueous chlorine chloride solution and anhydrous chlorine chloride |
|
Density |
0.8g/cm³(49.9lbs/ft³) |
|
Compression ratio,ASTMF36 |
50% |
|
Rebound rate,ASTM F36 |
12% |
|
Sealing |
|
|
ASTM F37(Fuel A) |
0.01mL/hr |
|
ASTM F37(Nitrogen) |
0.02mL/hr |
|
DIN 3535 Gas permeability |
0.01cc/min |
|
Peristaltic relaxation rate ASTM F38 |
30% |
|
Flexible, ASTM F147 |
10x |
Note:
The performance of the ASTM standard is measured based on a board thickness of 1/16 inches, but ASTM F38 is measured based on a board thickness of 1/32 inches. These properties can only be used as a general reference and cannot be used as a basis for acceptance or rejection. The data listed in this table are within the normal range of product performance. These data should not be used to compile technical specifications or used alone as a basis for design.
*When used for nominal pressure Class 300 or above, please consult the representative office.
Product Introducing:
Expanded PTFE Gasket Material For Flanges is widely used in various occasions that require sealing and leakproofing, especially the sealing of flange connections. PTFE (polytetrafluoroethylene) itself is a material with extremely high chemical stability. Expanded PTFE is expanded by physical methods to make it more flexible and have better sealing performance.
Product Features and Advantages:
Excellent chemical stability: Expanded PTFE material has extremely high resistance to chemical corrosion and can be used in a variety of chemical media such as acids, alkalis, solvents, etc. It is commonly used in chemical engineering, petrochemical industry and other fields.
Wide temperature adaptability: PTFE material can maintain good performance in the temperature range of -200℃ to +260℃, and is suitable for high temperature and high pressure environments.
Superior sealing performance: After expansion treatment, the expanded PTFE material has good flexibility and can well fill the tiny gaps at the flange connection to provide better sealing effect.
High pressure tolerance: Under high pressure environment, the expanded PTFE gasket can effectively prevent leakage and ensure the safe operation of the system.
Non-toxic and odorless: PTFE material meets FDA standards and can be used in industries with strict hygiene requirements such as food and medicine.
Strong anti-aging property: the material will not deteriorate due to oxidation, ultraviolet radiation and other factors, and has a long service life.
Adapt to various flange sizes: gaskets of different thicknesses and shapes can be customized to adapt to various flange sizes, with strong flexibility.
Typical application areas:
Chemical industry: used for flange sealing in chemical reactors and pipeline systems to prevent leakage of corrosive chemicals.
Oil and gas industry: In the process of oil and gas extraction, transportation, refining, etc., expanded PTFE gaskets are used for flange sealing of oil and gas pipelines to prevent leakage.
Pharmaceutical industry: In the process of drug production, expanded PTFE materials meet hygiene requirements and can be used for flange sealing in clean and high-clean environments.
Food processing: expanded PTFE does not contain any harmful substances, meets FDA requirements, and is widely used in the sealing needs of the food industry.
Energy and power industry: in the flange connection of equipment such as boilers, steam pipes, cooling systems, etc., it provides excellent sealing.
Environmental engineering: used for sealing needs of wastewater treatment, exhaust gas purification and other systems.
Marine and ship engineering: with good corrosion resistance, it is often used for flange sealing in marine environments.
Precautions and installation requirements:
Surface flatness requirements: The flange surface should be flat and smooth during installation to avoid impurities or rough surfaces affecting the sealing effect.
Preload force requirements: It is necessary to select the appropriate tightening force according to the actual pressure and temperature to ensure the sealing performance.
Compatibility check: Confirm that the expanded PTFE material used is compatible with the media in contact to ensure long-term and stable sealing effect.
Prevent overpressure: When used in a high-pressure environment, ensure that the gasket design meets the operating pressure range to avoid leakage.
KEEP IN TOUCH
About Us
Jiangsu Jintai Sealing Technology Co., Ltd.
Jiangsu Jintai Sealing Technology Co., Ltd. is China Expanded PTFE Gasket Material For Flanges Manufacturers and
Wholesale Expanded PTFE Gasket Material For Flanges Factory, we are a large comprehensive sealing technology enterprise, we specialize in researching, manufacturing and selling various types of seals, environment-friendly asbestos-free gaskets, specialized rubber material products and parts insulation materials for pneumatic and hydraulic systems. Moreover, we have formed a complete set with many industries such as shipping, power, iron and steel, chemistry, and machinery for many successive years.
Certificate Of Honor
News
-
Stainless steel seal rings are used as a part of various sealing systems to ensure tight and durable seals. Typically manufactured from high-quality stainless steel, these rings are designed to offer ...
READ MORE -
A rubber seal gasket is a mechanical seal made of flexible rubber material that is shaped to fit specific applications. It is usually positioned between two surfaces to prevent the passage of liquids,...
READ MORE -
The main function of rubber seals is to provide sealing and prevent media leakage. They achieve this goal by filling the gap between two contacting surfaces, ensuring that the equipment will not be da...
READ MORE
Expanded PTFE Gasket Material For Flanges Industry knowledge
The Versatility of PTFE Gaskets: Exploring the Advantages of JINTAI 9960 for Diverse Industries?
Polytetrafluoroethylene (PTFE) gaskets, as an indispensable high-performance sealing element in modern industry, have won wide recognition in the market for their excellent chemical stability, excellent physical properties and wide application fields. Among them, JINTAI 9960 expanded polytetrafluoroethylene gasket material, as a star product of Jiangsu Jintai Sealing Technology Co., Ltd., has shown extraordinary sealing effects in many industries such as chemical, pulp and paper, food and beverage with its unique characteristics and wide application scenarios.
PTFE gaskets, referred to as PTFE gaskets, are sealing elements made of polytetrafluoroethylene resin by molding, turning or cutting. As a polymer compound, polytetrafluoroethylene has extremely low friction coefficient, excellent chemical corrosion resistance, non-stickiness and a wide operating temperature range (-80℃ to +260℃, some products can even withstand high temperatures of up to 300℃ for a short time). These characteristics enable PTFE gaskets to maintain stable sealing performance and long service life in extreme environments.
JINTAI 9960 expanded polytetrafluoroethylene gasket, on the basis of inheriting the basic characteristics of PTFE gasket, further improves its adaptability and sealing performance. Its expansion characteristics enable the gasket to better fit irregular or rough flange surfaces during installation, thereby achieving a tighter sealing effect. In addition, the gasket material meets FDA requirements, is non-toxic and harmless, and is widely used in the food and beverage industry with extremely high hygiene requirements.
Excellent corrosion resistance: PTFE gaskets are almost unaffected by all chemicals, whether strong acids, strong alkalis or various organic solvents, and cannot cause significant erosion to them. This feature makes JINTAI 9960 gaskets show extraordinary stability when handling highly corrosive chemicals, especially suitable for industries such as chemical, pulp and papermaking.
Wide temperature adaptability: JINTAI 9960 gaskets can maintain good physical properties in the extreme temperature range of -80℃ to +260℃, ensuring reliable sealing under different working conditions. In addition, its short-term high temperature resistance also makes it suitable for some special high temperature environments.
Excellent sealing performance: Under pressure and temperature changes, JINTAI 9960 gasket can still maintain a good sealing effect. Its unique expansion characteristics and high-density fiber structure enable the gasket to form uniform compression on the sealing surface, effectively preventing medium leakage.
Easy to install and use: Expanded PTFE material is easy to cut and can be mechanically stamped or manually cut into any shape of gasket, which is convenient for installation and use. At the same time, its conformability to molding also enables good sealing on rough or damaged flange surfaces.
Application areas
JINTAI 9960 expanded PTFE gaskets are widely used in the following fields:
Chemical and petrochemical: In chemical equipment, reactors, storage tanks and pipeline flange connections, PTFE gaskets can effectively prevent chemical media leakage and are suitable for various corrosive working conditions such as strong acids, strong alkalis, organic solvents, etc.
Pharmaceutical and food industries: Due to its non-toxicity, high hygiene level, and non-absorption of media, PTFE gaskets are crucial in the sealing of pharmaceutical production, food processing equipment and pipelines.
Energy and power industry: In high-temperature and high-pressure equipment such as power plants and nuclear power plants, PTFE gaskets can withstand high temperature and high pressure environments and provide good electrical insulation performance.
Mechanical manufacturing and aerospace: In high-precision and high-demand sealing occasions such as precision mechanical parts, valves, pumps, and aircraft engines, PTFE gaskets are favored for their high wear resistance, low friction coefficient, and low temperature resistance.
Jiangsu Jintai Sealing Technology Co., Ltd. is a leading supplier of customized sealing gaskets, sealing packings, and rubber products in China. Its JINTAI 9960 expanded polytetrafluoroethylene gasket material has shown strong competitiveness in many industries such as chemicals, pulp and paper, and food and beverages due to its excellent performance and wide application fields. With the continuous advancement of industrial technology and the continuous upgrading of application needs, PTFE gaskets will continue to play an important role and provide more reliable sealing solutions for modern industrial production and scientific research.
