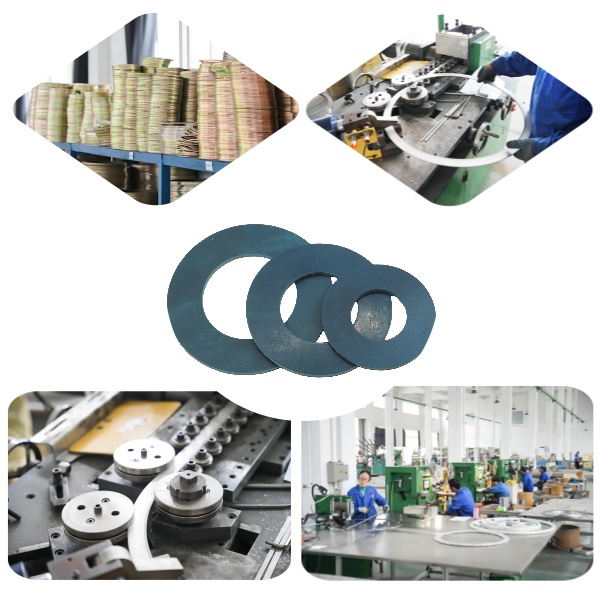

7900/7925/7950 Blue Compressed Aramid Fiber/Nitrile Binder Flange Gasket

JINTAI 7900/7925/7950

ASTM F104:f712120-A9B3E22K5L 151M5

Asbetteros-free compression gasket material

Use:

JINTAI 7900/7925/7950 is a general-purpose economical compression gasket material plate that can be used in weakly corrosive working conditions of pipelines, equipment and OEM equipment whose media are steam, hydrocarbons and refrigerants. This gasket material is an economical alternative material where the working conditions and uses are not severe:

CONTACT US 7900/7925/7950 Blue Compressed Aramid Fiber/Nitrile Binder Flange Gasket
  • 7900/7925/7950 Blue Compressed Aramid Fiber/Nitrile Binder Flange Gasket
  • 7900/7925/7950 Blue Compressed Aramid Fiber/Nitrile Binder Flange Gasket
  • 7900/7925/7950 Blue Compressed Aramid Fiber/Nitrile Binder Flange Gasket
  • 7900/7925/7950 Blue Compressed Aramid Fiber/Nitrile Binder Flange Gasket

Specifications

Advantage:

1. Good sealing performance greatly reduces users’ production costs.

2. The multifunctional gasket has better properties than traditional economical gaskets.

3. Anti-stick properties reduce sealing surface cleaning time

4. Good compressibility and resilience ensure good sealing.​

Element:

JINTAI 7900/7925/7950 contains high-strength aramid fiber, and its adhesive is high-quality nitrile rubber (NBR).

Anti-stick properties:

All JINTAl compression gasket materials have gone a long way in developing bonding agents with better anti-stick properties. All JINTAl compression gasket materials successfully pass the MIL-G-24696B 300°F/48 hrs Naval Facility Anti-Adhesion Test.

Typical performance:



Style 7900-off-white, marked

Style 7925-green, marked

Style 7950 - blue, marked

Fiber chick

Aramid

Gluing material

Nitrile rubber (NBR)

Applicable fluid media

Steam, water, inert gas, oil, fuel, dilute acid, dilute alkali

Density

1.7g/cm³(106 lbs/ft³)

Tensile strength, ASTM F152

1700 psi (11.7 MPa)

Compression rate, ASTM F36

7-17%

Rebound rate, ASTM F36

40%

Applicable temperature range

-100-7°F(-73-371℃)

Continuous operating temperature, max.

500°F(260℃)

Fluid PH value range (room temperature):

3-11

pressure, max.

1200psig(83 bar)

Fluid penetration resistance ASTM F146



IRM 903 oil, 5h300°F/149℃



Thickness increases

0-15%

Weight gain

15%

ASTM Fuel B 5h/70° F/21℃



Thickness increases

0-10%

Weight gain

12%

Sealing



ASTM F37(Fuel A)

0.03mL/HR

ASTM F37(Nitrogen)

0.5mL/hr

Insulation breakdown voltage, ASTMD 149

11.0KV/mm(279V/mil)

DIN 3535Gas permeability

0.05cc/min

Creep relaxation rate ASTM F38

20%

Flexible,ASTM F147

10x



Note :

The performance of the ASTM standard is measured based on the base frame plate thickness of 1/16 inches, but ASTM F38 is measured based on the plate thickness of 1/32 inches. These properties can only be used as a general reference and cannot be used as a basis for risk or rejection. The data listed in this table are within the normal range of product performance. These data should not be used to compile technical specifications or used alone as a basis for design.

*When used for nominal pressure Class 300 or above, please consult our representative office.

Product Introducing:

Blue Compressed Aramid Fiber/Nitrile Binder Flange Gasket is often used in industrial applications that require high strength, corrosion resistance and high temperature resistance. This type of gasket is made of aramid fiber (Aramid Fiber) and nitrile rubber (Nitrile Binder) composite materials, and has excellent sealing performance and strong mechanical strength.

Product overview:
Material: composite material of Aramid Fiber and Nitrile Rubber (NBR). Aramid fibers are generally known for their excellent high temperature resistance and strength, while nitrile rubber gives the gasket excellent chemical stability and oil resistance.
Color: blue
Form: Usually sheet or round with holes cut (for mounting flanges).
Usage: Widely used in flange connections in various pipeline systems, especially in high pressure, high temperature and corrosion-prone working conditions.

Main features:
High temperature resistance: The material is capable of operating in a higher temperature range, often withstanding temperatures up to 250°C or even higher, depending on the ratio of aramid fiber and nitrile rubber.

Corrosion resistance: The composite material of aramid fiber and nitrile rubber makes the gasket have excellent chemical corrosion resistance and can withstand the erosion of oil, solvents and certain acid and alkali liquids.

Excellent sealing performance: Blue compressed aramid fiber/nitrile adhesive flange gasket has excellent sealing performance and is suitable for sealing environments that need to withstand pressure. It effectively prevents liquid or gas leakage.

High mechanical strength: Aramid fiber gives the gasket high tensile strength and compressive strength, allowing it to maintain good sealing performance under high pressure and high stress environments.

Oil and fuel resistance: Due to the nitrile rubber content, this gasket is particularly suitable for contact with oil, fuel and lubricants.

Flexibility and ease of processing: This material is easy to process and can be customized in size and shape according to specific needs, and is suitable for flanges of various sizes.

Selection and installation recommendations:
Adaptability: When selecting a suitable flange gasket, in addition to considering the temperature and pressure resistance of the material itself, you must also consider the nature of the medium in the working environment (such as whether there are strong acids, strong alkali, oil, etc.).
Size and Thickness: Select a gasket of appropriate thickness based on flange size and application requirements. Too thick or too thin may affect the sealing effect.
Installation method: When installing, make sure the flange surface is clean and flat to avoid damage to the gasket. At the same time, pressure must be applied evenly during installation to avoid seal failure due to uneven pressure.

KEEP IN TOUCH

SUBMIT
About Us
Jiangsu Jintai Sealing Technology Co., Ltd.
Jiangsu Jintai Sealing Technology Co., Ltd.
Jiangsu Jintai Sealing Technology Co., Ltd. is China 7900/7925/7950 Blue Compressed Aramid Fiber/Nitrile Binder Flange Gasket Manufacturers and Wholesale 7900/7925/7950 Blue Compressed Aramid Fiber/Nitrile Binder Flange Gasket Factory, we are a large comprehensive sealing technology enterprise, we specialize in researching, manufacturing and selling various types of seals, environment-friendly asbestos-free gaskets, specialized rubber material products and parts insulation materials for pneumatic and hydraulic systems. Moreover, we have formed a complete set with many industries such as shipping, power, iron and steel, chemistry, and machinery for many successive years.
Certificate Of Honor
  • Asbetteros Free Gasket (1)
  • Asbetteros Free Gasket (2)
  • Black PTFE Packing (1)
  • Black PTFE Packing (2)
  • Corrugated Metal Gasket (1)
  • Corrugated Metal Gasket (2)
  • Graphite Composite Gasket (1)
News
7900/7925/7950 Blue Compressed Aramid Fiber/Nitrile Binder Flange Gasket Industry knowledge

The Rise of Aramid Gaskets: Are They the Future of Industrial Sealing Solutions?

In the industrial field, sealing technology is a key link to ensure the safe and stable operation of equipment, and its importance is self-evident. With the continuous advancement of materials science, a high-performance fiber material called Aramid Fiber has gradually emerged in the field of sealing gaskets. Among them, the JINTAI 7900/7925/7950 series of aramid gaskets launched by Jiangsu Jintai Sealing Technology Co., Ltd. have become an ideal choice for solving sealing problems in many industries with their unique performance advantages.

Aramid, the full name of aromatic polyamide fiber, is a new type of synthetic fiber with excellent properties such as high strength, high modulus, high temperature resistance, and chemical corrosion resistance. These characteristics make aramid widely used in aerospace, military, automobile, chemical industry and other fields. In the field of sealing gaskets, aramid materials have become one of the important materials to replace traditional asbestos gaskets with their excellent corrosion resistance, good resilience and excellent thermal stability.

JINTAI 7900/7925/7950 series aramid gaskets, as the star product of Jiangsu Jintai Sealing Technology Co., Ltd., not only inherit all the advantages of aramid materials, but also further improve their sealing performance and durability through fine manufacturing processes.

Economical and efficient: As a general economical compression gasket material, JINTAI series aramid gaskets effectively control costs while ensuring excellent performance, providing users with a highly cost-effective solution. It performs particularly well in weakly corrosive conditions such as pipelines, equipment and OEM equipment for media such as steam, hydrocarbons and refrigerants.
Asbestos-free design: With the enhancement of environmental awareness, asbestos-free materials have become a development trend in the field of sealing gaskets. JINTAI series aramid gaskets completely abandon asbestos components, which not only meets environmental protection requirements, but also avoids health risks that may be caused by the release of asbestos fibers, providing a safer working environment for staff.
Excellent corrosion resistance: Aramid materials themselves have extremely strong chemical stability and can resist the erosion of various corrosive media such as acids, alkalis, and salts. This makes the JINTAI series aramid gaskets have a wide range of application prospects in the chemical, petroleum, natural gas and other industries, which can effectively extend the service life of equipment and reduce maintenance costs.
Good resilience and sealing: The high modulus characteristics of aramid fiber give the JINTAI series gaskets excellent resilience, and even under extreme conditions such as high temperature and high pressure, it can maintain stable sealing performance. This feature makes this series of gaskets perform well in preventing medium leakage and protecting equipment safety.
Wide range of application fields: With the above advantages, the JINTAI series aramid gaskets have been successfully used in many industries such as shipping, electricity, steel, chemical industry, machinery, etc. In these fields, it has won wide praise from users for its excellent sealing performance and reliable quality.
Strength and contribution of Jiangsu Jintai Sealing Technology Co., Ltd.
As a leading enterprise in China's customized sealing gaskets, sealing packings, and rubber products, Jiangsu Jintai Sealing Technology Co., Ltd. has always been committed to the research and development and innovation of sealing technology. The company has a professional R&D team and advanced production equipment, which can provide customers with a full range of solutions from design, manufacturing to after-sales service. Over the years, Jintai Sealing has established long-term and stable cooperative relationships with many industry giants, jointly promoting the progress and development of sealing technology.

With the continuous advancement of industrial technology and increasingly stringent environmental protection requirements, aramid gaskets, as the preferred solution for modern industrial sealing, will have a broader market prospect. Jiangsu Jintai Sealing Technology Co., Ltd., with its strong R&D strength, high-quality product quality and perfect service system, will continue to play a leading role in this field and make greater contributions to promoting the development of sealing technology in my country and even the world.
