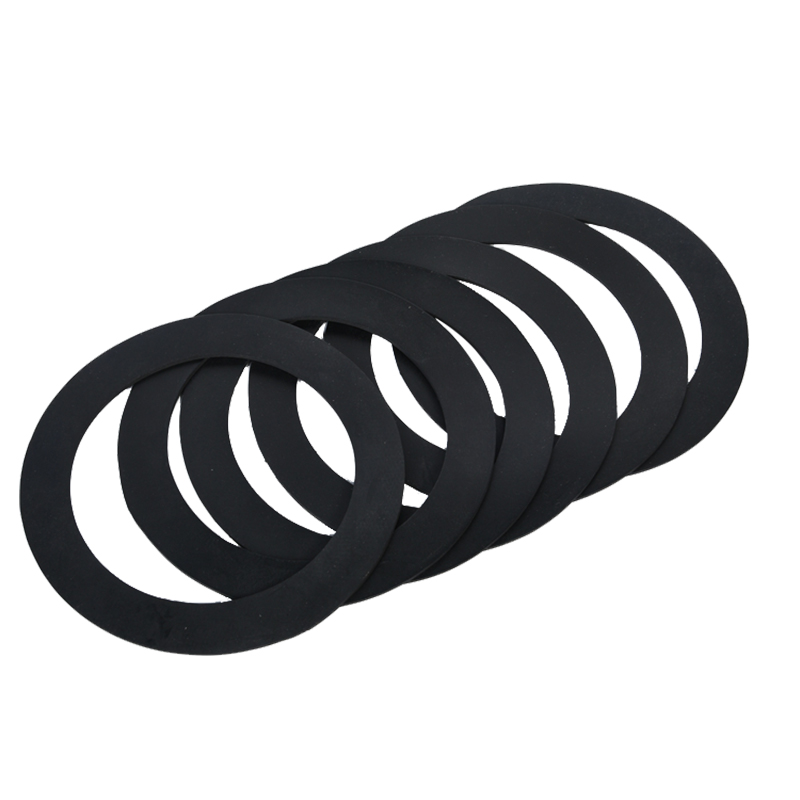

Rubber Seal Gasket

Rubber gaskets are gaskets suitable for a wide range of needs. They are vulcanized with polymers, various additives, fillers, and pigments to form a complete rubber. They have good elasticity and can be used with very low tightening force. It has an effective sealing effect under low temperature and low-pressure conditions and will not split when removed from the flange surface. A good sealing effect can also be achieved for uneven and damaged flange surfaces. Since the provincial military zone glue has very strong expansion permeability, it can form a very effective sealing effect against the passage of gas and fluid.

CONTACT US Rubber Seal Gasket
  • Rubber Seal Gasket
  • Rubber Seal Gasket
  • Rubber Seal Gasket
  • Rubber Seal Gasket

Specifications

Model

Material code

Material type

Hardness

Use occasions



NBR

Nit rie

80

Hydraulic oil, glycol, and oil in water-sensitive emulsions, inorganic and vegetable oils, hot water, fuel, petroleum, dilute acid, alkali, and low-temperature salt solutions, silicone oil, and grease



SBR

Shyrene Butaciene

80

Hot water, oxygen, water, mechanical oil, animal and vegetable oil, fireproof hydraulic fluid, dilute salt solution, ozone, etc.



CR

Necorene

70

Saltwater, ordinary refrigerant, carbon dioxide, non-oxidizing acid release, alkali, etc.



EPDM

Etnylene Propylendene

80

Water, alcohol, hexylene glycol, ketone, silicone oil and grease, weak acid, etc.



FKM

Vton

75

Thermal oil, aromatic solvents, chemicals, vegetable oils and greases, natural gas, vinyl materials (including alcohol), high vacuum, steam, oxygen extraction, hot water, dilute acid, etc.



SI

Silicone

70

Hot air, oxygen, water, machinery and transmission oil, animal and vegetable oils and greases, non-petroleum brake oil, fire pressure fluid, dilute salt solution, ozone, etc.



IIR

Butyl

80

Hot water, grease, acid, alkali solution, electrode solvent, ozone, salt solution, etc.



NR

Natural Rubber

65

Inorganic salts, ammonia, weak acids and bases, etc.

Product Introducing:

Industrial/Mechanical Anti-Vibration O-type EPDM Rubber Sealing Gasket is a component used to prevent vibration transmission, seal liquid or gas, and protect mechanical equipment from external environmental influences. Installed at the connection of equipment or pipelines, it can effectively reduce the impact of vibration while providing reliable sealing performance.

Main Features of the Product
Anti-Vibration Performance:
The anti-vibration property of EPDM rubber enables it to effectively absorb and reduce the vibration generated during the operation of mechanical equipment, especially suitable for high vibration environments, such as engines, compressors, pumps, machine frames and other equipment.

Good Chemical Resistance:
EPDM has good acid resistance, alkali resistance, and water resistance, and is suitable for various harsh chemical environments. It can withstand the erosion of various chemicals such as acids, alkalis, salts, and liquids.

Temperature Resistance:
It can work in a temperature range of -40°C to 120°C, has good high and low temperature tolerance, and is suitable for use in extreme climatic conditions.

UV and Ozone Resistance:
EPDM material has excellent UV and ozone aging resistance, suitable for long-term use outdoors and in scenes exposed to the sun.

Sealing:
High sealing is the basic requirement of O-rings. EPDM sealing rings can effectively prevent the penetration of external substances such as gas, liquid, dust, etc., ensuring the cleanliness and stability of the internal environment of the equipment.

High elasticity and recovery:
EPDM has extremely high elasticity and good compression recovery ability, and can still maintain its original shape and performance after long-term work.

Industry applications and scenarios
Automotive industry: O-rings are used in engines, transmission systems, air-conditioning systems and other parts to reduce vibration, noise and provide good sealing.

Construction equipment and machinery: In high-vibration environments such as construction machinery, mining machinery, and agricultural equipment, EPDM sealing gaskets effectively reduce the vibration and impact of equipment.

Pumps and compressors: Used in equipment such as liquid pumps and gas compressors to reduce vibration and seal fluids to prevent leakage.

Electronic equipment: The use of O-rings in various electronic equipment helps to prevent dust and moisture from entering and prevent internal components from being damaged by external environmental influences.

Energy equipment: In renewable energy fields such as wind power generation and solar equipment, O-rings are used to seal connectors to protect equipment from environmental and mechanical vibrations.

HVAC system (heating, ventilation and air conditioning): In HVAC systems, EPDM seals are used in the connection parts of pipes, fans, and compressors to effectively prevent air leakage and noise transmission.

Hydraulic and pneumatic equipment: At the connection points of hydraulic cylinders, pneumatic cylinders and other equipment, EPDM rubber O-rings play a sealing role, while suppressing vibration and improving system stability.
